Chicago Metallic T24 Hook 2850

Sehr hochwertige T24 Hak-Unterkonstruktion mit universeller Hauptschiene für eine schnelle und sichere Montage
Datenblatt herunterladen
Datenblatt herunterladen
Zurück
Haupt- und Querschienen mit einer Höhe von 38 mm für hohe Tragfähigkeit und bestmögliche Kompatibilität
Querschienen mit präziser zugeschnittener stumpfer Verbindung und passgenauer Hak-Verbindung
Werkzeuglos demontierbar und wiederverwendbar
Für viele Deckenplatten und Kantenausbildugen geeignet
CMC_650-DE

Coupling

Zurück

Leistung

Tragfähigkeit Tragfähigkeit

Chicago Metallic™ T24 Hook 2850 deflection

 Kg/m²
Abhängeabstand (mm) Modulgrösse (mm) Bei einer Gesamtdurchbiegung von...
2.5 mm 4.0 mm
1200 600 x 600 9.9 16.5
1200 1200 x 600 10.9 17.9
1200 1800 x 600 3.3 5.7
1250 625 x 625 8.0 13.3
1250 1250 x 625 8.8 14.5
Korrosionsbeständigkeit Korrosionsbeständigkeit B
Brandverhalten Brandverhalten A1 / A2-s1,d0 (Color-all)
Umwelt Umwelt Vollständig recycelbar
Back

Chicago Metallic™ T24 Hook 2850 deflection

 Kg/m²
Abhängeabstand (mm) Modulgrösse (mm) Bei einer Gesamtdurchbiegung von...
2.5 mm 4.0 mm
1200 600 x 600 9.9 16.5
1200 1200 x 600 10.9 17.9
1200 1800 x 600 3.3 5.7
1250 625 x 625 8.0 13.3
1250 1250 x 625 8.8 14.5
Back
Back
Back
Zurück

Winkel und Zubehör

Tragschiene

Component Länge Height Width Product number Farben Verpackung
Tragschiene
2800.tif Tragschiene T24 Klick / Hak 2500 38 24 T24 MR CL&HK Multiple Colors See Packaging Dimensions

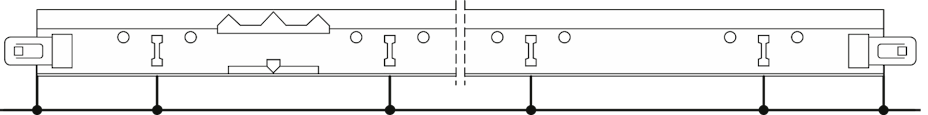

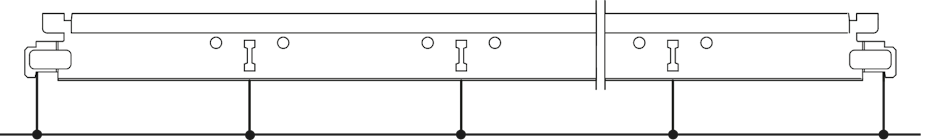

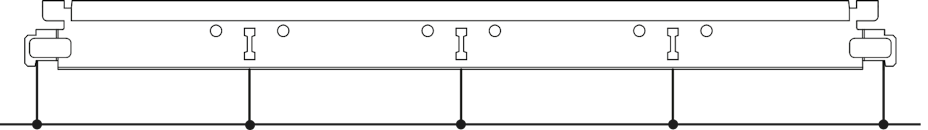

Position of slots and suspension holes

Position of slots and suspension holes
Slots: 16 Distance between slots: 78,125 / 156,25 / 14 x 156,25 / 78,125
2800.tif Tragschiene T24 Klick / Hak 3750 38 24 T24 MR CL&HK Multiple Colors See Packaging Dimensions

Position of slots and suspension holes

Position of slots and suspension holes
Slots: 24 Distance between slots: 78,125 / 156,25 / 22 x 156,25 / 78,125
2800.tif Tragschiene T24 Klick / Hak 2400 38 24 T24 MR CL&HK Multiple Colors See Packaging Dimensions

Position of slots and suspension holes

Position of slots and suspension holes
Slots: 24 Distance between slots: 50 / 100 / 22 x 100 / 50
2800.tif Tragschiene T24 Klick / Hak 3600 38 24 T24 MR CL&HK Multiple Colors See Packaging Dimensions

Position of slots and suspension holes

Position of slots and suspension holes
Slots: 36 Distance between slots: 50 / 100 / 34 x 100 / 50

Querschiene

Component Länge Height Width Product number Farben Verpackung
Querschiene
2851.tif Querschiene T24 Hak 300 38 24 T24 CT HOOK Weiss 001 See Packaging Dimensions

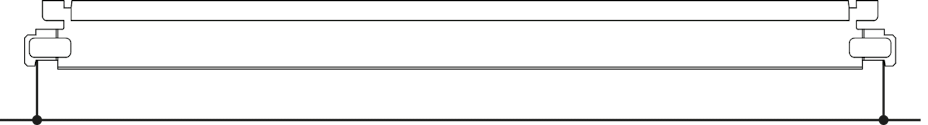

Position of slots and suspension holes

Position of slots and suspension holes
Slots: 0 Distance between slots: / 300 / /
2855.tif Querschiene T24 Hak 1500 38 24 T24 CT HOOK Weiss 001 See Packaging Dimensions

Position of slots and suspension holes

Position of slots and suspension holes
Slots: 0 Distance between slots: / 1500 / /
2853.tif Querschiene T24 Hak 900 38 24 T24 CT HOOK Weiss 001 See Packaging Dimensions

Position of slots and suspension holes

Position of slots and suspension holes
Slots: 0 Distance between slots: / 900 / /
2851.tif Querschiene T24 Hak 312.5 38 24 T24 CT HOOK Weiss 001 See Packaging Dimensions

Position of slots and suspension holes

Position of slots and suspension holes
Slots: 0 Distance between slots: / 312,5 / /
2852.tif Querschiene T24 Hak 625 38 24 T24 CT HOOK Weiss 001 See Packaging Dimensions

Position of slots and suspension holes

Position of slots and suspension holes
Slots: 1 Distance between slots: 312,5 / / / 312,5
2856.tif Querschiene T24 Hak 1250 38 24 T24 CT HOOK Weiss 001 See Packaging Dimensions

Position of slots and suspension holes

Position of slots and suspension holes
Slots: 3 Distance between slots: 312,5 / 312,5 / 312,5 / 312,5
2852.tif Querschiene T24 Hak 600 38 24 T24 CT HOOK Multiple Colors See Packaging Dimensions

Position of slots and suspension holes

Position of slots and suspension holes
Slots: 1 Distance between slots: 300 / / / 300
2856.tif Querschiene T24 Hak 1200 38 24 T24 CT HOOK Multiple Colors See Packaging Dimensions

Position of slots and suspension holes

Position of slots and suspension holes
Slots: 3 Distance between slots: 300 / 300 / 300 / 300
2856.tif Querschiene T24 Hak 1800 38 24 T24 CT HOOK Multiple Colors See Packaging Dimensions

Position of slots and suspension holes

Position of slots and suspension holes
Slots: 5 Distance between slots: 300 / 300 / 3 x 300 / 300

Wandwinkel

Component Länge Height Width Product number Farben Verpackung
L-Winkel
-1420.tif L-Wandwinkel 24x24 mm 3050 24 24 L24x24 Matt White 11 See Packaging Dimensions
-1420.tif L-Wandwinkel 24x24 mm 3050 24 24 L24x24 Weiss 001 See Packaging Dimensions
Schattenwinkel
W_shadow_Moulding_Wall_Angle_01_00kaal_WithText.png Stufenwandwinkel 15x15x10x15 mm 3050 15 10 W10x15 Multiple Colors See Packaging Dimensions
W_shadow_Moulding_Wall_Angle_01_00kaal_WithText.png Stufenwandwinkel 15x12x8x15 mm 3050 15 7.8 W8x12 Multiple Colors See Packaging Dimensions

Zubehör

Component Länge Height Product number Verpackung
Verschiedene Anwendungen
OPV 08.TIF.tif Füllblöckchen für T24 - Weiß 8 FB T24 001 See Packaging Dimensions
Filler block.png Füllblöckchen für T24 - Schwarz 24 8 FB T24 88 See Packaging Dimensions
Abhängeklammer
ACC SUSP FIX CLIP & NAIL H=50 MM 100C.tif Direktbefestigungsklammer für Chicago Metallic T-Schienen + Sicherungsstift 50 SH 50 See Packaging Dimensions
Zurück

Position of slots and suspension holes

Position of slots and suspension holes
Slots: 16 Distance between slots: 78,125 / 156,25 / 14 x 156,25 / 78,125
Zurück

Position of slots and suspension holes

Position of slots and suspension holes
Slots: 24 Distance between slots: 78,125 / 156,25 / 22 x 156,25 / 78,125
Zurück

Position of slots and suspension holes

Position of slots and suspension holes
Slots: 24 Distance between slots: 50 / 100 / 22 x 100 / 50
Zurück

Position of slots and suspension holes

Position of slots and suspension holes
Slots: 36 Distance between slots: 50 / 100 / 34 x 100 / 50
Zurück

Position of slots and suspension holes

Position of slots and suspension holes
Slots: 0 Distance between slots: / 300 / /
Zurück

Position of slots and suspension holes

Position of slots and suspension holes
Slots: 0 Distance between slots: / 1500 / /
Zurück

Position of slots and suspension holes

Position of slots and suspension holes
Slots: 0 Distance between slots: / 900 / /
Zurück

Position of slots and suspension holes

Position of slots and suspension holes
Slots: 0 Distance between slots: / 312,5 / /
Zurück

Position of slots and suspension holes

Position of slots and suspension holes
Slots: 1 Distance between slots: 312,5 / / / 312,5
Zurück

Position of slots and suspension holes

Position of slots and suspension holes
Slots: 3 Distance between slots: 312,5 / 312,5 / 312,5 / 312,5
Zurück

Position of slots and suspension holes

Position of slots and suspension holes
Slots: 1 Distance between slots: 300 / / / 300
Zurück

Position of slots and suspension holes

Position of slots and suspension holes
Slots: 3 Distance between slots: 300 / 300 / 300 / 300
Zurück

Position of slots and suspension holes

Position of slots and suspension holes
Slots: 5 Distance between slots: 300 / 300 / 3 x 300 / 300
Zurück
Zurück
Zurück
Zurück
Zurück
Zurück
Zurück
Zurück

Downloads

documents





pdf
DoP-RFN-T2438MD-A03 - Tragschiene T24 Klick / Hak
DoP-RFN-T2438MD-A03 - Tragschiene T24 Klick / Hak

pdf
DoP-RFN-T2438MC-A03 - Querschiene T24 Hak
DoP-RFN-T2438MC-A03 - Querschiene T24 Hak

pdf
DoP-RFN-PTLR-A03 - L-Wandwinkel 24x24 mm
DoP-RFN-PTLR-A03 - L-Wandwinkel 24x24 mm

pdf
Chicago Metallic T24 Hook 2850 | Datenblatt
Chicago Metallic T24 Hook 2850 | Datenblatt

pdf
DoP-RFN-PTW-A02 - Stufenwandwinkel 15x12x8x15 mm
DoP-RFN-PTW-A02 - Stufenwandwinkel 15x12x8x15 mm

pdf
DoP-RFN-ACCSUSPFIX-C02 - Direktbefestigungsklammer für Chicago Metallic T-Schienen + Sicherungsstift
DoP-RFN-ACCSUSPFIX-C02 - Direktbefestigungsklammer für Chicago Metallic T-Schienen + Sicherungsstift

pdf
Umweltproduktdeklarationen (EPD) - Unterkonstruktionen
Umweltproduktdeklarationen (EPD) - Unterkonstruktionen

pdf
Zurück
