Chicago Metallic™ Screenline

Hochwertiges Schienensystem für die modulare Gestaltung von Deckensegeln und Baffeln
Zurück
Zurück

Leistung

Korrosionsbeständigkeit Korrosionsbeständigkeit B
Brandverhalten Brandverhalten A1
Umwelt Umwelt Vollständig recycelbar
Back
Back
Back
Zurück

Winkel und Zubehör

Tragschiene

Component Länge Height Width Product number Farben Verpackung
Screenline Schienen
SD[1].tif Screenline Profil 20x43x20 mit einem Eckanschluss 2070 43 20 SCR C40 LC Weiss 001 See Packaging Dimensions
SD[1].tif Screenline Profil 20x43x20 mit einem Eckanschluss 2970 43 20 SCR C40 LC Weiss 001 See Packaging Dimensions
SD[1].tif Screenline Profil 20x43x20 mit einem Eckanschluss 3095 43 20 SCR C40 LC Weiss 001 See Packaging Dimensions
SD[1].tif Screenline Profil 20x43x20 mit einem Eckanschluss 3570 43 20 SCR C40 LC Weiss 001 See Packaging Dimensions
SD[1].tif Screenline Profil 20x43x20 mit einem Eckanschluss 3720 43 20 SCR C40 LC Weiss 001 See Packaging Dimensions
SD[1].tif Screenline Profil 20x43x20 mit einem Eckanschluss 2370 43 20 SCR C40 LC Weiss 001 See Packaging Dimensions
SD[1].tif Screenline Profil 20x43x20 mit einem Eckanschluss 2470 43 20 SCR C40 LC Weiss 001 See Packaging Dimensions
SP[1].tif Screenline Zwischenprofil 20x43x20 mm 3600 43 20 SCR C40 LL Weiss 001 See Packaging Dimensions
SP[1].tif Screenline Zwischenprofil 20x43x20 mm 3750 43 20 SCR C40 LL Weiss 001 See Packaging Dimensions
SD[1].tif Screenline Profil 20x43x20 mit einem Eckanschluss 2157.5 43 20 SCR C40 LC Weiss 001 See Packaging Dimensions
SD[1].tif Screenline Profil 20x43x20 mit einem Eckanschluss 2670 43 20 SCR C40 LC Weiss 001 See Packaging Dimensions
SD[1].tif Screenline Profil 20x43x20 mit einem Eckanschluss 2782.5 43 20 SCR C40 LC Weiss 001 See Packaging Dimensions
SD[1].tif Screenline Profil 20x43x20 mit einem Eckanschluss 3270 43 20 SCR C40 LC Weiss 001 See Packaging Dimensions
SD[1].tif Screenline Profil 20x43x20 mit einem Eckanschluss 3407.5 43 20 SCR C40 LC Weiss 001 See Packaging Dimensions
SE[1].tif Screenline Profil 20x43x20 mit zwei Eckanschlüssen 540 43 20 SCR C40 CC Weiss 001 See Packaging Dimensions
SE[1].tif Screenline Profil 20x43x20 mit zwei Eckanschlüssen 565 43 20 SCR C40 CC Weiss 001 See Packaging Dimensions
SE[1].tif Screenline Profil 20x43x20 mit zwei Eckanschlüssen 1140 43 20 SCR C40 CC Weiss 001 See Packaging Dimensions
SE[1].tif Screenline Profil 20x43x20 mit zwei Eckanschlüssen 1190 43 20 SCR C40 CC Weiss 001 See Packaging Dimensions
SE[1].tif Screenline Profil 20x43x20 mit zwei Eckanschlüssen 1740 43 20 SCR C40 CC Weiss 001 See Packaging Dimensions
SE[1].tif Screenline Profil 20x43x20 mit zwei Eckanschlüssen 1815 43 20 SCR C40 CC Weiss 001 See Packaging Dimensions
SE[1].tif Screenline Profil 20x43x20 mit zwei Eckanschlüssen 1440 43 20 SCR C40 CC Weiss 001 See Packaging Dimensions
SE[1].tif Screenline Profil 20x43x20 mit zwei Eckanschlüssen 2940 43 20 SCR C40 CC Weiss 001 See Packaging Dimensions
SE[1].tif Screenline Profil 20x43x20 mit zwei Eckanschlüssen 3065 43 20 SCR C40 CC Weiss 001 See Packaging Dimensions
SE[1].tif Screenline Profil 20x43x20 mit zwei Eckanschlüssen 3540 43 20 SCR C40 CC Weiss 001 See Packaging Dimensions
SE[1].tif Screenline Profil 20x43x20 mit zwei Eckanschlüssen 3690 43 20 SCR C40 CC Weiss 001 See Packaging Dimensions
SE[1].tif Screenline Profil 20x43x20 mit zwei Eckanschlüssen 2340 43 20 SCR C40 CC Weiss 001 See Packaging Dimensions
SE[1].tif Screenline Profil 20x43x20 mit zwei Eckanschlüssen 2440 43 20 SCR C40 CC Weiss 001 See Packaging Dimensions
SE[1].tif Screenline Profil 20x43x20 mit zwei Eckanschlüssen 2040 43 20 SCR C40 CC Weiss 001 See Packaging Dimensions
SE[1].tif Screenline Profil 20x43x20 mit zwei Eckanschlüssen 2127.5 43 20 SCR C40 CC Weiss 001 See Packaging Dimensions
SE[1].tif Screenline Profil 20x43x20 mit zwei Eckanschlüssen 252.5 43 20 SCR C40 CC Weiss 001 See Packaging Dimensions
SE[1].tif Screenline Profil 20x43x20 mit zwei Eckanschlüssen 1502.5 43 20 SCR C40 CC Weiss 001 See Packaging Dimensions
Tragschiene
4870.tif Screenline T-Tragschiene 38 24 SCR T24 MR HOOK Weiss 001 See Packaging Dimensions

Position of slots and suspension holes

Position of slots and suspension holes
Slots: 0 Distance between slots: / / /

Querschiene

Component Länge Height Width Product number Farben Verpackung
Querschiene

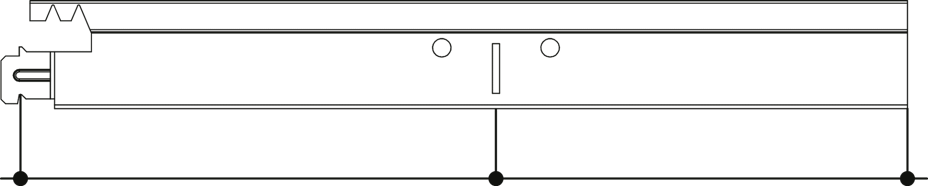

-4892.tif Screenline T-Querschiene 600 38 24 SCR T24 CT HOOK Weiss 001 See Packaging Dimensions

Position of slots and suspension holes

Position of slots and suspension holes
Slots: 1 Distance between slots: 288 / / / 298.5
-4892.tif Screenline T-Querschiene 625 38 24 SCR T24 CT HOOK Weiss 001 See Packaging Dimensions

Position of slots and suspension holes

Position of slots and suspension holes
Slots: 1 Distance between slots: 300,5 / / / 311

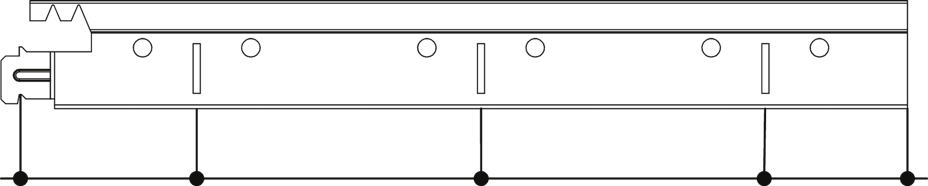

-4894.tif Screenline T-Querschiene 1200 38 24 SCR T24 CT HOOK Weiss 001 See Packaging Dimensions

Position of slots and suspension holes

Position of slots and suspension holes
Slots: 3 Distance between slots: 288 / 300 / 300 / 298,5
-4894.tif Screenline T-Querschiene 1250 38 24 SCR T24 CT HOOK Weiss 001 See Packaging Dimensions

Position of slots and suspension holes

Position of slots and suspension holes
Slots: 3 Distance between slots: 300,5 / 312,5 / 312,5 / 311

Zubehör

Component Height Product number Verpackung
Randwinkel und Übergangsprofile
D4004.tif Befestigungsclip Screenline SCR FC T See Packaging Dimensions
D4006.tif Screenline Abhänger SCR SUSP See Packaging Dimensions
40CL.tif Längsverbinder Screenline SCR LC 001 See Packaging Dimensions
40CO.tif Aussenecke Screenline SCR OC 001 See Packaging Dimensions
40IC.tif Innenecke Screenline SCR IC 001 See Packaging Dimensions
4156-250.tif Screenline Design-Abhängekabel DHS1 See Packaging Dimensions
Abhängeklammer
11.tif Gebogenes Abhängeschiebestück für Chicago Metallic™ T-Schienen 57.5 FH B See Packaging Dimensions
